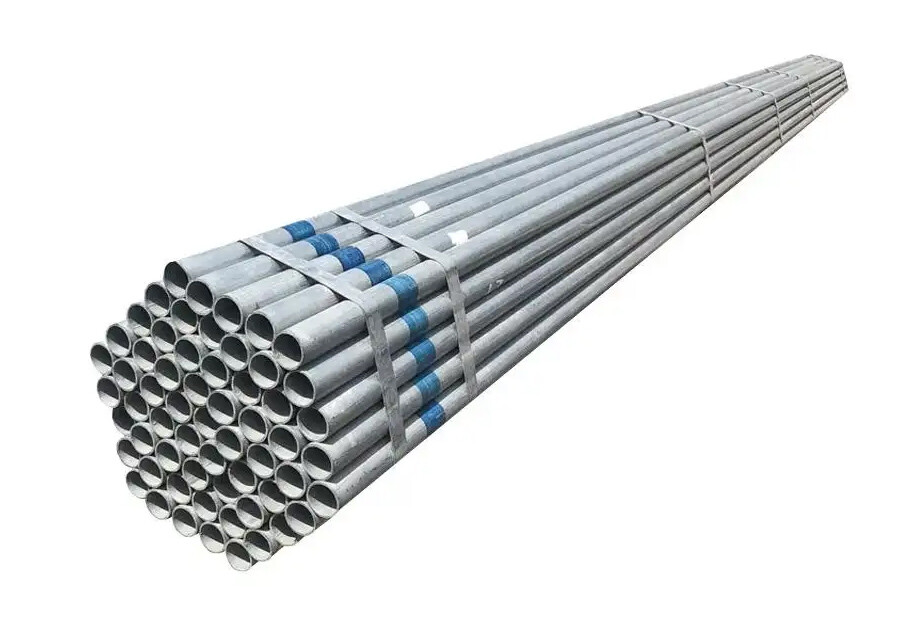

Galvanized steel pipe

The pictures shown are for reference only.

Hot dip galvanized pipeHot dip galvanized pipe is to make molten metal and iron matrix reaction to produce alloy layer, so that the substrate and coating two combined.Hot dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank, and then sent into the hot dip plating tank.Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

PRICES DEPEND ON PRODUCT SPECIFICATIONS

Product sellable. Not available in the online Store - please contact us.

Contact us

SPECIFICATION

MATERIAL

PRODUCT DISPLAY

DOWNLOAD

Outer Diameter	1/2”~16” 20~406mm
Thickness	0.8~2.75mm
Length	Normal 5.8m, 6m ，random length can be customized
Zinc Coating	40~275g/㎡
Tolerance	OD:+/-0.5mm WT: +/-0.05mm Length: +/-20mm


Straightness	As Per Standard
Certificate	ISO 9001,IS014001,ISO45001,ISO50001,CE,LR,ICC,SGS.BV etc
Surface Treatment	Zinc plated ,Passivation, Marking,Embossing
Pipe End	Plain end / Blunt end / Screwed and socked & protected by plastic caps
Deep Processing	Threaded,sockets,end cap,painting,powder coated, oiled, punching,shrink,woven bag, stamping,embossing ect.
Applications	Steel Structure,Scaffolding,Fence,Conduit,Greenhouse,Decorative pipe, Post, Roofing

Galvanized round pipe specifications:

Outer Diameter		Wall Thickness	Length
Inch	mm	mm	meter
1/2"	21.3mm	0.6mm-3.0mm	0.3m-12m
3/4"	26.9mm	0.6mm-3.0mm	0.3m-12m
1"	33.4mm	1.0mm-3.0mm	0.3m-12m
1-1/4"	42.3mm	1.0mm-4.0mm	0.3m-12m
1-1/2"	48.3mm	1.0mm-4.0mm	0.3m-12m
2"	60.3mm	1.5mm-4.0mm	0.3m-12m
2-1/2"	76.1mm	1.5mm-4.0mm	0.3m-12m
3"	88.9mm	1.5mm-9.5mm	0.3m-12m
4"	114.3mm	2.0mm-9.5mm	0.3m-12m
5"	141.3mm	3.0mm-9.5mm	0.3m-12m
6"	168.3mm	3.0mm-12.0mm	1.0m-12m
8"	219.1mm	3.2mm-12.0mm	1.0m-12m
10"	273mm	3.2mm-12.0mm	1.0m-12m
12"	323.8mm	6.0mm-15.0mm	1.0m-12m
14"	355.6mm	8.0mm-15.0mm	1.0m-12m
16"	406.4mm	8.0mm-20.0mm	1.0m-12m

Galvanized square pipe specifications:

sizo(mm)		wall Thicknoss (mm)	szo(mm)		wall Thicknoss (mm)	szo(mm)		wall Thicknoss (mm)
19x19		1	50x60 50x70 50x75 50x80 50x90 60x80 30x100	55x55 60x60 65x65 70x70 40x70 40x80 40x90 40x100	1.3	60x170 70x160 75x150 80x150 80x180	127x127 130x130 140x140 150x150 100x200	2.5
		1.2			1.4			2.75
		1.3			1.5			3.0-5.75
		1.4			1.7			7.5-9.75
		1.5			1.8			10.5-11.75
		1.7			2.0			12.5-15
		2.0			2.2	150x180 60x200 60x220 80x200 100x180 100x250 140x180	80x220 160x160 180x180 12ox160 120x200 150x170 150x200	2.5
25x25 20x30		1			2.5-4.0			2.75-3.25
		1.2			4.25-5.0			3.5-5.0
		1.3			5.25-5.75			5.25-9.75
		1.4			5.75-6.0			10.5-11.75
		1.5	40x120 40x140 50x100 50x110 50x120 50x125 70x100	75x75 80x80 85x85 90x90 60x90 60x100 60x120 80x100	1.3			12.5-15.75
		1.7			1.5			16-30
		1.8			1.7	100x300 100x350 125x250 130x250 140x240	135x135 200x200 225x225 150x220 150x250	2.75
		2			1.8			3.0-3.25
		2.2			2.0			3.5-9.75
		2.5-3.0			2.2			11.5-11.75
20x40 20x50 25x40 30x40	30x30 32x32 35x35	1			2.5-4.0			12.5-14.75
		1.2			4.25-5.0			15.5-15.75
		1.3			5.25-5.75			16-30
		1.4			7.5-9.75	180x300 100x400 150x350 150x300 200x250	220x220 250x250 200x280 200x300 130x300	3.5-4.0
		1.5	60x140 75x125 40x135 50x140	100x100 80x120 60x130 50x150	1.5			4.5-5.75
		1.7			1.7			6.5-11.75
		1.8			2			12.5-14.75
		2.o			2.2			15.5-17.75
		2.2			2.5-5.0	200x400 200x350	300x300 250x350	4.75-11.75
		2.5-3.0			5.25-6.0			12.5-14.75
		3.5-3.75			6.5-9.75			15.5-17.75
20x60 25x50 25x65 30x50 30x60 30x70 20x80	40x40 45x45 40x50 40x60 50x50 35x60 38x38	1.2			11.5-16	300x320 300x350 200x500	350x350 250x450 300x400	4.75-11.75
		1.3	50x160 70x150 80x140 80x160 90x150 90x160 100x120 100x140 120x180	110x110 100x125 120x120 125x125 60x150 60x160 60x180 65x180 100x150	2.5			12.5-14.75
		1.4			2.75			15.5-17.75
		1.5			3.0-4.0			18-30
		1.7			4.25-4.75	150x450 200x450 200x600 250x400 250x500	280x280 400x400 300x450 300x500 350x400	4.5-5.75
		1.8			5.25-6.0			6.5-11.75
		2.o			6.5-7.75			12.5-14.75
		2.2			9.5-9.75			15.5-17.75
		2.5-4.0			10.5-11.75			18-30
		4.25-5.0			12.5-15.75	300x600 300x700 400x500 400x600 300x650	320x320 450x450 500x500	4.5-7.75
		5.25-5.75			16-30			9.5-9.75
		5.75-6.0						11.5-13.75
								14.5-15.75
								16.5-17.75
								18-30
