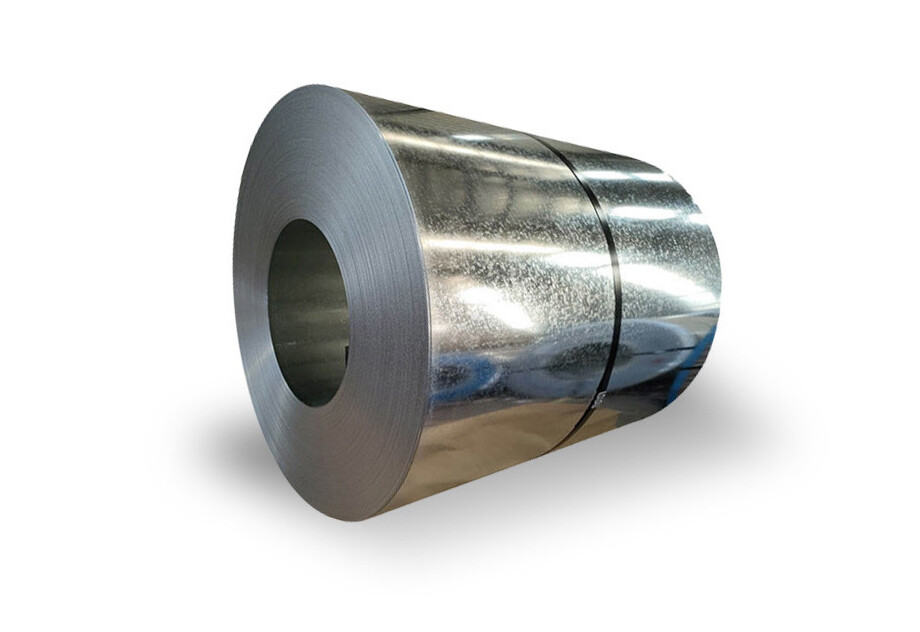

Galvanized steel coil

The pictures shown are for reference only.

Galvanized steel plate is to prevent corrosion on the surface of the steel plate to extend its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc-coated steel plate is called galvanized plate. Common processes are hot dip galvanizing and electric galvanizing, zinc layer 20-275g/m.

PRICES DEPEND ON PRODUCT SPECIFICATIONS

Product sellable. Not available in the online Store - please contact us.

Contact us

SPECIFICATION

MATERIAL

PRODUCT DISPLAY

DOWNLOAD

Thickness	0.12mm-6.00mm
width	600mm-1500mm
length	1 m-12m, support customization
standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Zinc layer	Hot-dip galvanizing: 60-275g/m²
Zinc layer	Pre-galvanized: 80-275g/m²

Standard	Grade	C	Si	Mn	P	S	Ti
For cold formingChinese standards	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
For cold formingJapan standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1SGCD2	0.120.10	0.500.50	0.600.45	0.0400.030	0.0300.030	0.0250.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
for structuresJapan standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400SGC440	0.250.25	0.500.50	1.702.00	0.2000.200	0.0350.035	0.1500.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
for structuresAISI standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical properties：

grade	Yield strength MPa ≥	Tensile strength MPa≥	Elongation A% ≥
DX51D+Z/ZM/AZ/AM	240-380	270-500	22
DX52D+Z/ZM/AZ/AM	140-300	270-420	26
DX53D+Z/ZM/AZ/AM	140-260	270-380	30
DX54D+Z/ZM/AZ/AM	120-220	260-350	36
S220GD+Z/ZM/AM	220	300	20
S250GD+Z/ZM/AZ/AM	250	330	19
S280GD+Z/ZM/AM	280	360	18
S300GD+AZ/AM	300	380	18
S320GD+Z/ZM/AM	320	390	17
S350GD+Z/ZM/AZ/AM	350	420	16
S450GD+AZ/AM	450	480	15
S550GD+Z/ZM/AZ/AM	550	550	－
