Seamless Steel Pipe

The pictures shown are for reference only.

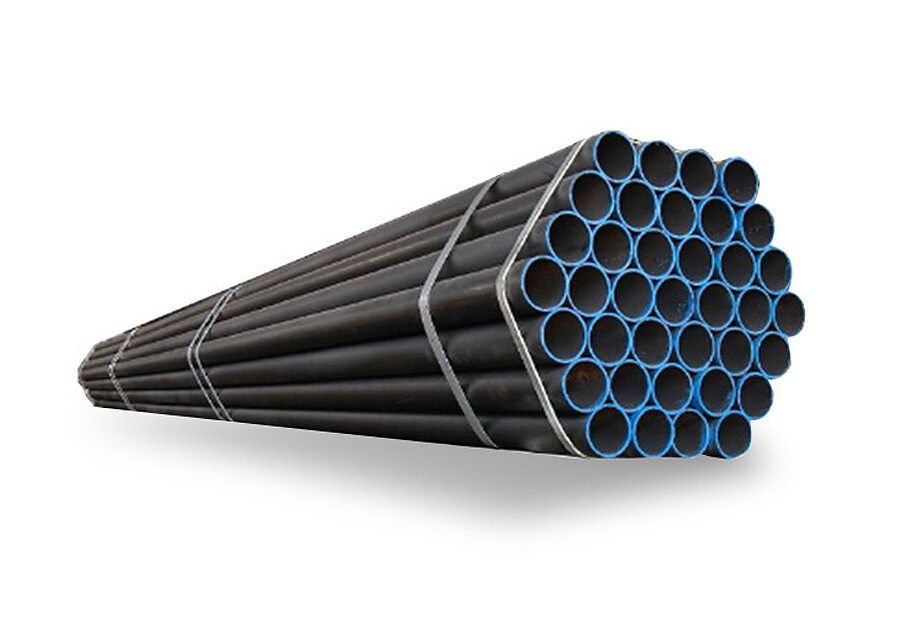

Seamless Steel Pipe

Seamless steel pipe is perforated by the whole round steel, and the steel pipe with no weld on the surface is called seamless steel pipe. According to the production method, the seamless steel pipe can be divided into hot-rolled seamless steel pipe, cold-rolled seamless steel pipe, cold-drawn seamless steel pipe, extruded seamless steel pipe, pipe jacking and so on. According to the section shape, the seamless steel pipe is divided into two kinds of round and shaped, shaped pipe has square, oval, triangle, hexagonal, melon seed, star, fin tube and many complex shapes. The maximum diameter is 900mm and the minimum diameter is 4mm. According to different uses, there are thick wall seamless steel pipes and thin wall seamless steel pipes. Seamless steel pipe is mainly used for petroleum geological drilling pipe, petrochemical cracking pipe, boiler pipe, bearing pipe and high-precision structural steel pipe for automobiles, tractors and aviation.

PRICES DEPEND ON PRODUCT SPECIFICATIONS

Product sellable. Not available in the online Store - please contact us.

Contact us

SPECIFICATION

MATERIAL

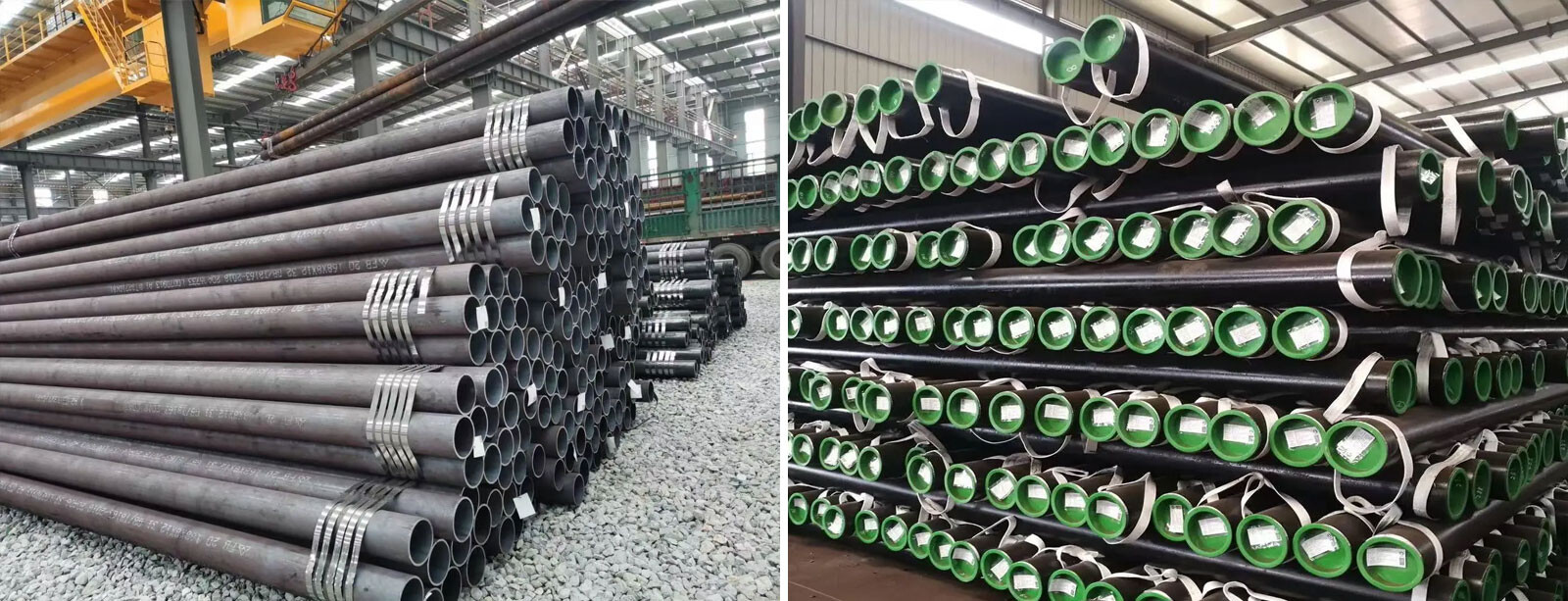

PRODUCT DISPLAY

DOWNLOAD

Sizes:

Maximum diameter: 36" (914.4mm) minimum diameter: 1/2" (21.3mm)
Maximum thickness: 60mm mininmum thickness: 2.11mm

SCH: SCH10,SCH20,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH160,XXS

Coating：

3PE Coating

3PP Coating

FBE Coating

Epoxy Coating

Special Painting

Standard of carbon seamless steel pipe

ASTM A53 Gr.B	Black and hot-dipped zinc-coated steel pipes welded and seamless
ASTM A106 Gr.B	Seamless carbon steel for high temperature service
ASTM SA179	Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes
ASTM SA192	Seamless carbon steel boiler tubes for high pressure
ASTM SA210	Seamless Medium-carbon boiler and superheater tubes
ASTM A213	Seamless alloy-steel boiler, superheater, and heat-exchanger tubes
ASTM A333 GR.6	seamless and welded carbon and alloy steel pipe intended for use at low temperatures.
ASTM A335 P9,P11,T22,T91	Seamless ferritic alloy-steel pipe for high-temperature service
ASTM A336	Alloy steel forgings for pressure and high-temperature parts
ASTM SA519 4140/4130	Seamless carbon for mechanical tubing
API Spec 5CT J55/K55/N80/L80/P110/K55	Seamless steel pipe for casing
API Spec 5L PSL1/PSL2 Gr.b, X42/46/52/56/65/70	Seamless steel pipe for line pipe
DIN 17175	Seamless steel tube for elevated temperture
DN2391	Cold drawn seamless prevision pipe
DIN 1629	Seamless circular unalloyed steel tubes subject to special requirements

Tolerances of carbon seamless steel pipe

Pipe types	Pipe sizes(mm)	Tolerances
Hot rolled	OD<50	±0.50mm
	OD≥50	±1%
	WT<4	±12.5%
	WT 4～20	+15%, -12.5%
	WT>20	±12.5%
Cold drawn	OD 6～10	±0.20mm
	OD 10～30	±0.40mm
	OD 30～50	±0.45
	OD>50	±1%
	WT≤1	±0.15mm
	WT 1～3	+15%, -10%
	WT >3	+12.5%, -10%

Standard	Grade	Chemical Components (%)					Mechanical Properties
Standard	Grade	C	Si	Mn	P	S	Tensile STrength(Mpa)	Yield STrength(Mpa)
ASTM A53	A	≤0.25	-	≤0.95	≤0.05	≤0.06	≥330	≥205
ASTM A53	B	≤0.30	-	≤1.2	≤0.05	≤0.06	≥415	≥240
ASTM A106	A	≤0.30	≥0.10	0.29-1.06	≤0.035	≤0.035	≥415	≥240
ASTM A106	B	≤0.35	≥0.10	0.29-1.06	≤0.035	≤0.035	≥485	≥275
ASTM SA179	A179	0.06-0.18	-	0.27-0.63	≤0.035	≤0.035	≥325	≥180
ASTM SA192	A192	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	≥325	≥180
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	≥331	≥207
	B	0.28	-	1.20	0.030	0.030	≥414	≥241
	X42	0.28	-	1.30	0.030	0.030	≥414	≥290
	X46	0.28	-	1.40	0.030	0.030	≥434	≥317
	X52	0.28	-	1.40	0.030	0.030	≥455	≥359
	X56	0.28	-	1.40	0.030	0.030	≥490	≥386
	X60	0.28	-	1.40	0.030	0.030	≥517	≥448
	X65	0.28	-	1.40	0.030	0.030	≥531	≥448
	X70	0.28	-	1.40	0.030	0.030	≥565	≥483
API 5L PSL2	B	0.24	-	1.20	0.025	0.015	≥414	≥241
	X42	0.24	-	1.30	0.025	0.015	≥414	≥290
	X46	0.24	-	1.40	0.025	0.015	≥434	≥317
	X52	0.24	-	1.40	0.025	0.015	≥455	≥359
	X56	0.24	-	1.40	0.025	0.015	≥490	≥386
	X60	0.24	-	1.40	0.025	0.015	≥517	≥414
	X65	0.24	-	1.40	0.025	0.015	≥531	≥448
	X70	0.24	-	1.40	0.025	0.015	≥565	≥483
	X80	0.24	-	1.40	0.025	0.015	≥621	≥552
