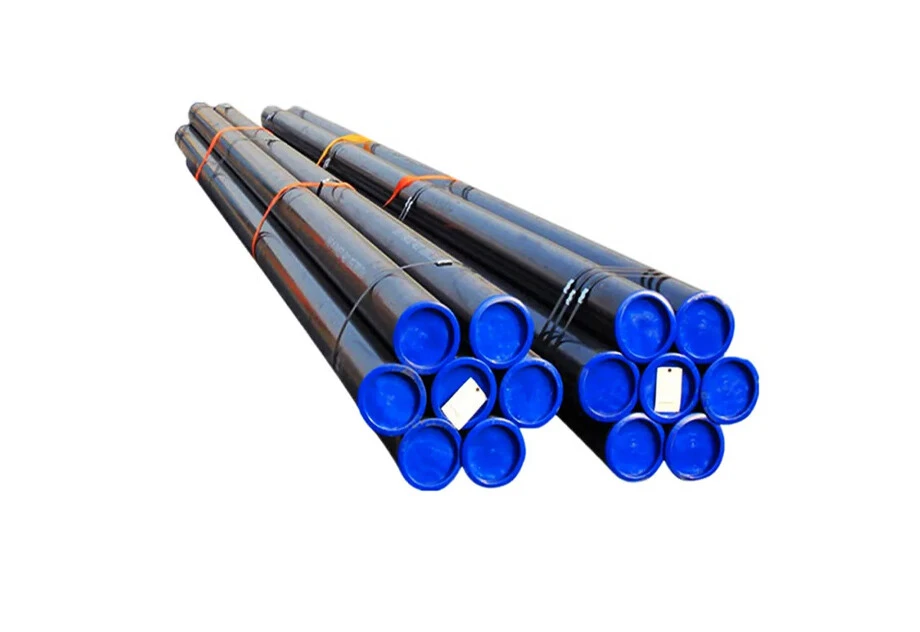

API 5L steel pipe

API pipeline pipe is a pipeline pipe belonging to the United States petroleum standard, and the pipeline pipe is to extract the oil, steam, and water from the ground through the pipeline pipe to the oil and gas industry enterprises. The pipeline pipe comprises a seamless pipe and a welded steel pipe, the pipe end has a flat end, a threaded end and a socket end; The connection modes are end welding, collar connection, socket connection, etc.

PRICES DEPEND ON PRODUCT SPECIFICATIONS

Product sellable. Not available in the online Store - please contact us.

Contact us

SPECIFICATION

MATERIAL

PRODUCT DISPLAY

DOWNLOAD

Outside diameter：	60.3mm~762mm
Wall Thickness:	Sch10,Sch40,Sch80,Sch160, 2mm - 30mm
Unit length:	3m, 5.8m, 6m, 11.8m, 12m, 13.5m or as per customers' request
Application:	Fluid Pipe,Water Pipe,API pipe
Certification:	ISO9001/API/SGS, BV, TUV certificate
Surface Treatment:	Bare/ Black varnised / oiled ,Hot Dip Galvanized,
Tolerance:	±10%
Type:	Seamless/welded
Processing Service:	Bending, Punching, Cutting, Grooved ends, Screwed ends, galvanised
Ends:	Bevel ends, Plain ends, Grooved ends, Screwed ends
End protector:	PVC Caps
Packing:	Bundles with PVC wrapped
Technology:	Hot rolling/welding

Nominal Size(Inch)	Outer Diameter(mm)	SCH40Thickness (mm)	SCH80Thickness (mm)	SCH160Thickness (mm)
1/4"	13.7	2.24	3.02
3/8"	17.1	2.31	3.2
1/2"	21.3	2.77	3.73	4.78
3/4"	26.7	2.87	3.91	5.56
1"	33.4	3.38	4.55	6.35
1-1/4"	42.2	3.56	4.85	6.35
1-1/2"	48.3	3.68	5.08	7.14
2"	60.3	3.91	5.54	8.74
2-1/2"	73	5.16	7.01	9.53
3"	88.9	5.49	7.62	11.13
3-1/2"	101.6	5.74	8.08
4"	114.3	6.02	8.56	13.49
5"	141.3	6.55	9.53	15.88
6"	168.3	7.11	10.97	18.26
8"	219.1	8.18	12.7	23.01
10"	273	9.27	15.09	28.58
12"	323.8	10.31	17.48	33.32
14〞	355.6	9.53	11.13	19.05
16〞	406.4	9.53	12.7	21.44
18〞	457	9.53	14.27	23.83
20〞	508	9.53	15.09	26.19
24〞	610	9.53	17.48	30.96

Standard	Class	Grade	Chemical Analysis(%)				Mechanical Properties(min)(Mpa)
Standard	Class	Grade	C	Mn	P	S	Tensile Strength	Yield Strength
API 5L	PSL1	B	0.26	1.20	0.030	0.030	414	241
		X42	0.26	1.30	0.030	0.030	414	290
		X46	0.26	1.40	0.030	0.030	434	317
		X52	0.26	1.40	0.030	0.030	455	359
		X56	0.26	1.40	0.030	0.030	490	386
		X60	0.26	1.40	0.030	0.030	517	414
		X65	0.26	1.45	0.030	0.030	531	448
		X70	0.26	1.65	0.030	0.030	565	483
	PSL2	B	0.22	1.20	0.025	0.015	414	241
		X42	0.22	1.30	0.025	0.015	414	290
		X46	0.22	1.40	0.025	0.015	434	317
		X52	0.22	1.40	0.025	0.015	455	359
		X56	0.22	1.40	0.025	0.015	490	386
		X60	0.22	1.40	0.025	0.015	517	414
		X65	0.22	1.45	0.025	0.015	531	448
		X70	0.22	1.65	0.025	0.015	565	483
		X80	0.22	1.85	0.025	0.015	621	552

Standard	Brand	Chemical composition (%)	CEV（%）
C	Si	Mn	P	S	V	Nb	Ti
API SPEC 5L GB/T9711.2	B	≤0.16	≤0.40	≤1.10	≤0.020	≤0.010	－	－	－	≤0.42
API SPEC 5L GB/T9711.2	B	≤0.16	≤0.40	≤1.10	≤0.020	≤0.010	－	－	－	≤0.42
X42	≤0.17	≤0.40	≤1.20	≤0.020	≤0.010	≤0.05	≤0.05	≤0.04	≤0.42
X52	≤0.20	≤0.45	≤1.60	≤0.020	≤0.010	≤0.10	≤0.05	≤0.04	≤0.45
X60	≤0.21	≤0.45	≤1.60	≤0.020	≤0.010	≤0.15	≤0.05	≤0.04	Agreement
X65	≤0.16	≤0.45	≤1.60	≤0.020	≤0.010	≤0.06	≤0.05	≤0.06	≤0.45
X70	≤0.16	≤0.45	≤1.70	≤0.020	≤0.010	≤0.06	≤0.05	≤0.06	≤0.45
